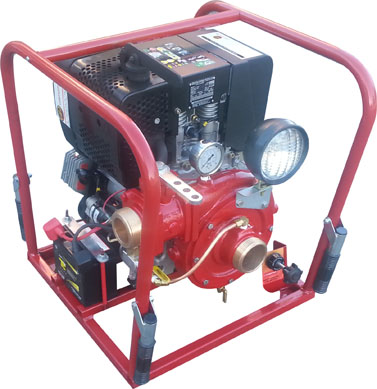

Engine Specifications:

- 1B40 Hatz air cooled engine

- Single-cylinder 4-stroke Diesel engine

- EPA TIER IV and CARB TIER IV compliant

- 12V electric start with recoil & recoil start as backup

- 1.32 gallons (5l) integrated fuel tank

Pump Specifications:

- Direct drive C.E.T.single stage centrifugal pump

- Pump body made from resistant aluminum alloy

- Bronze impeller

- Mechanical shaft seal

- Exhaust priming system,guaranteed up to 20’ (6

 meter) lift

- One 2 1/2” (65 mm) delivery outlet with Fire Type

 swing-out valve

- One 2 1/2' (65 mm) suction inlet

- Dimensions: L 592 x W 521 x H 584 (mm)

- Weight: 84 kg

Performance:

- 250 GPM @ 10 PSI

- 230 GPM @ 25 PSI

- 165 GPM @ 50 PSI

- 115 GPM @ 75 PSI

- 70 GPM @ 85 PSI
