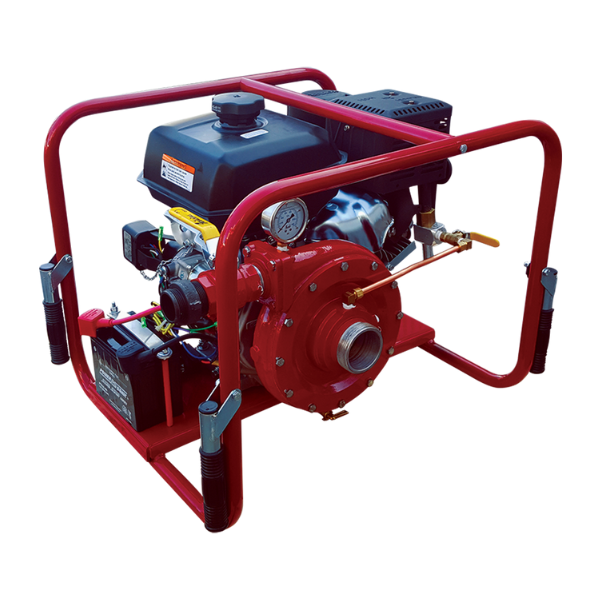

Mid Range Pump PFP-14HPKHL-EM-MR

Engine Specifications:

- CH440 Kohler air cooled engine

- Single cylinder, 4-stroke gasoline engine

- 12V electric start with recoil start as backup - 1.8 gallon (7 l) integrated fuel tank

- 10 amp. charging system

Pump Specifications:

- C.E.T single stage centrifugal pump, direct drive

- Pump body made from high resistance aluminum alloy

- Bronze impeller

- Mechanical shaft seal

- Exhaust priming system, guaranteed up to 6 meter lift

- One 1.5" (38 mm) delivery outlet with 1/4-turn ball valve

- One 2.5" (64 mm) suction inlet

- Dimensions: L 552 x W 673 x H 514 (mm)

- Weight: 74 kg

Performance:

- Maximum flow : 240 GPM

- Max. pressure : 130 PSI

- 215 GPM @ 25 PSI

- 105 GPM @ 100 PSI

- 170 GPM @ 50 PSI

Download Brochure
